Medical Device 7.4V 1800mAh Lithium Ion Polymer Battery Pack / 2S
Li-Polymer Battery Pack
Model : UNM406168
Voltage : 7.4V
Capacity : 1800mAh
Cell Size : Max:4.0*W61.0*H68.0mm
Batterey Pack Size : Max:8.5*W61.5*H71.0mm
Application : For Medical Device / Bluetooth Product / Beauty
Equipment...
Lipo Battery Pack 406168 2S 7.4V 1800mAh Parameter Table
| Item | Specification | Remark | |
| 4.1.1 Typical Capacity | 1800mAh | 0.5C charge 0.2C discharge | |
| Minimum Capacity | 1750mAh | ||
| 4.1.2 Nominal Voltage | 7.4V | ||
| 4.1.3 End Voltage | 6.0V | ||
4.1.4 Charging Current (Std.) | 0.2CA=(360mA) | Ambient temperature 0~+45℃ | |
4.1.5 Charging Current (Max.) | 1.0CA=(1800mA) | Ambient temperature 0~+45℃ | |
4.1.6 Charging Voltage | 8.4V | ||
4.1.7 Charging Time (Std.) | 6~7.0 hours | ||
4.1.8 Charging Time (Max.) | 1~2.0 hours | ||
4.1.9 Discharging Current (Std.) | 0.2CA=(360mA) | Ambient temperature -20~+60℃ | |
4.1.10 Continuous Discharging Current (Max.) | 1.0CA=(1800mA) | Ambient temperature -20~+60℃ | |
| 4.1.11 Soft Pack Internal Resistance(25℃) | <220mΩ | AC Impedance 1KHz | |
| 4.1.12 Soft pack Weight | About 65g | ||
4.1.13Temperature range for storage | less than 1 month | -5~+45℃ | Percentage of recoverable capacity 80﹪ |
less than 3 month | 0~+35℃ | ||
less than 1 year | 23±5℃ | ||
4.1.14Open Circuit Voltage | ≥7.60V | Measure with voltmeter. | |
4.1.15Energy density | 400Wh/L | ||
Welcome to conatct us to advise us your required information about
battery and asking for a detail specification document for review.

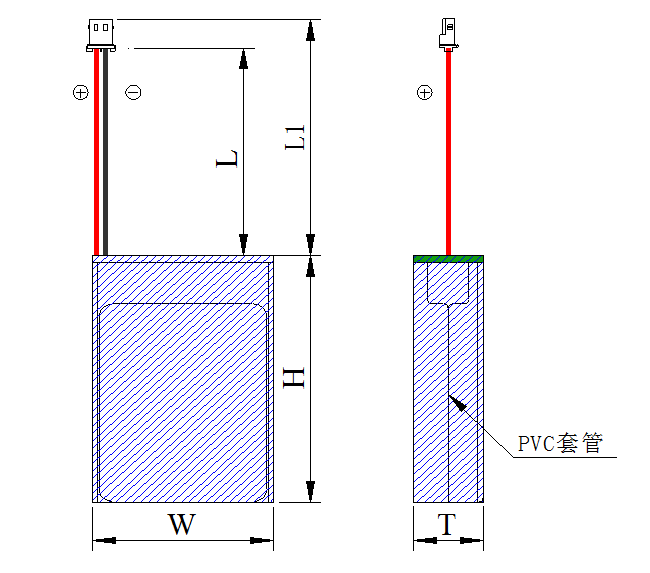

Li-ion Polymer Battery Pack 406168 2S 7.4V 1800mAh Pictures
Packaging & Delivery&Warranty
Packaging Details : netural package or customized package .
Port : Shenzhen/Hong Kong
Lead Time : Shipped in 30 days after payment
Warranty : 12 months
Features
1, Light weight and higher energy density than any rechargeable battery
2, Installed IC chip will prevent the battery pack from over charge and over discharge.
It helps protect battery chemistry integrity and prolongs battery life.
3, Installed polyswitch will cut off power if battery discharge current more than 6.6Ah
4, Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power
5, Supply which requires compact size and lighter weight
6, The battery module is wrap by PVC
